ZigBee / IEEE 802.15.4 application board information


This is great example of the GUI features of StampPlot from
BASIC Stamp/StampPlot user Stuart Weightman.

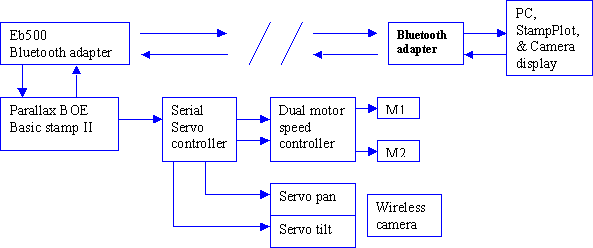

We think the block diagram and StampPlot interface says it all!  Well, most all, here's a
discussion from Stuart in PDF format.   bluetooth-bot-cam.PDF

A really nice blend of BS2 programming, Bluetooth, Robotics and StampPlot!

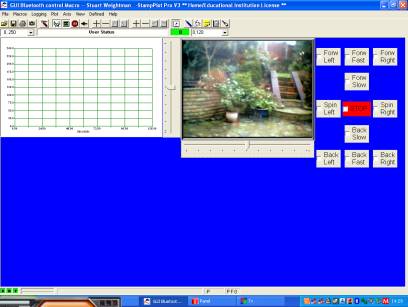

         Note: Camera window is set to "Stay on top" and
                       positioned over StampPlot Interface



Links:
EmbeddedBlue Bluetooth Transceiver Module
